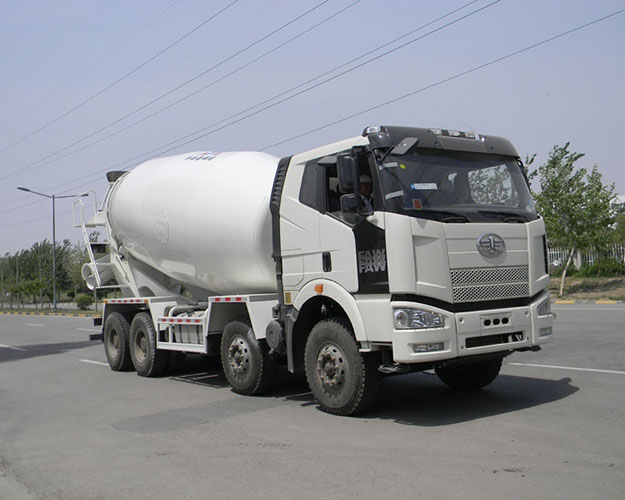

The liberation of 16 cubic stirring
Current position :First page > Product display > Concrete mixer truck > liberation
混凝土搅拌车特点:
Inside the tank, the double helix blade, moderate density, taper increase before a goal kick type symmetric stirring plate, jar with double blades and discharging guide vane, use material more even, faster.
2, tanks used domestic pioneering submerged arc welding technology, the strength of stronger more beautiful appearance, the connection parts of tank to prolong the service life of the lap joint structure, head cold spinning technology in Germany, sleek and beautiful, with six pieces of reinforcing plate within the head, the wear-resisting performance is stronger.
3, mix the cone Angle is low, prolongs the service life of the hydraulic pump, motor, reducer, vice beam with high strength pipe, is equipped with vibration in central area, the vehicle capacity and the traffic is bad when stress release in time, make the vehicle center of gravity to reduce the vehicle can runs more smoothly.
4, blade made of more than 20 sets of mould, and ensures that the spiral curve and spiral Angle and screw pitch, mixing concrete mixing is realized.

The main performance parameters
The serial number

project

unit

The numerical

1
The product name

The liberation of 16 cubic stirring
2
Chassis models

JHL5311GJB
3
Drive form

8*4
4
The vehicle shape size (length * width * height)
mm
10800*2500*3998
5
The wheelbase
mm
2100+3200+1350
6
Before hanging
mm
1500
7
After the suspension
mm
2650
8
Top speed
km/h
80
9
The vehicle kerb mass
kg
17885
10
The vehicle's mass
kg
25000
11
The rated load quality
kg
12920,12985
12
tire

11.00-20,11.00R20, 12.00-20,12.00R20
