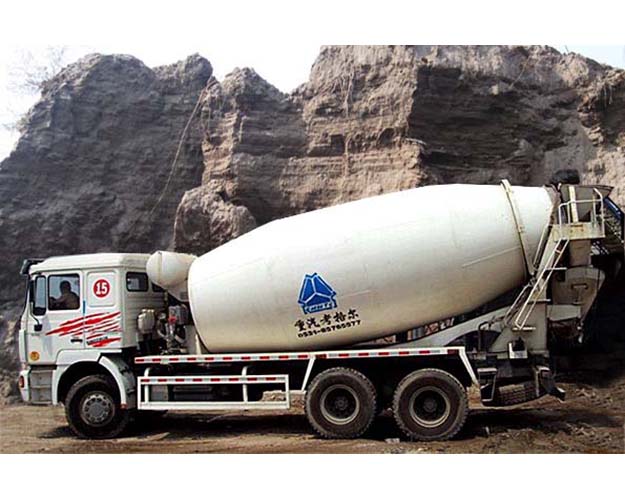

Concrete mixer truck features:
Inside the tank, the double helix blade, moderate density, taper increase before a goal kick type symmetric stirring plate, jar with double blades and discharging guide vane, use material more even, faster.
2, tanks used domestic pioneering submerged arc welding technology, the strength of stronger more beautiful appearance, the connection parts of tank to prolong the service life of the lap joint structure, head cold spinning technology in Germany, sleek and beautiful, with six pieces of reinforcing plate within the head, the wear-resisting performance is stronger.
3, mix the cone Angle is low, prolongs the service life of the hydraulic pump, motor, reducer, vice beam with high strength pipe, is equipped with vibration in central area, the vehicle capacity and the traffic is bad when stress release in time, make the vehicle center of gravity to reduce the vehicle can runs more smoothly.
4, blade made of more than 20 sets of mould, and ensures that the spiral curve and spiral Angle and screw pitch, mixing concrete mixing is realized.

The main performance parameters

The serial number	project	unit	The numerical
1	The product name		6 x 4 White House card
2	Chassis models		1225284
3	Drive form		ZZ1253N4241C
4	The vehicle shape size (length * width * height)	mm	1001524963930
5	The wheelbase	mm	4200
6	Before hanging	mm	1525
7	After the suspension	mm	2940
8	Top speed	km/h	78
9	The vehicle kerb mass	kg	14180
10	The vehicle's mass	kg	25000
11	The rated load quality	kg	10690
